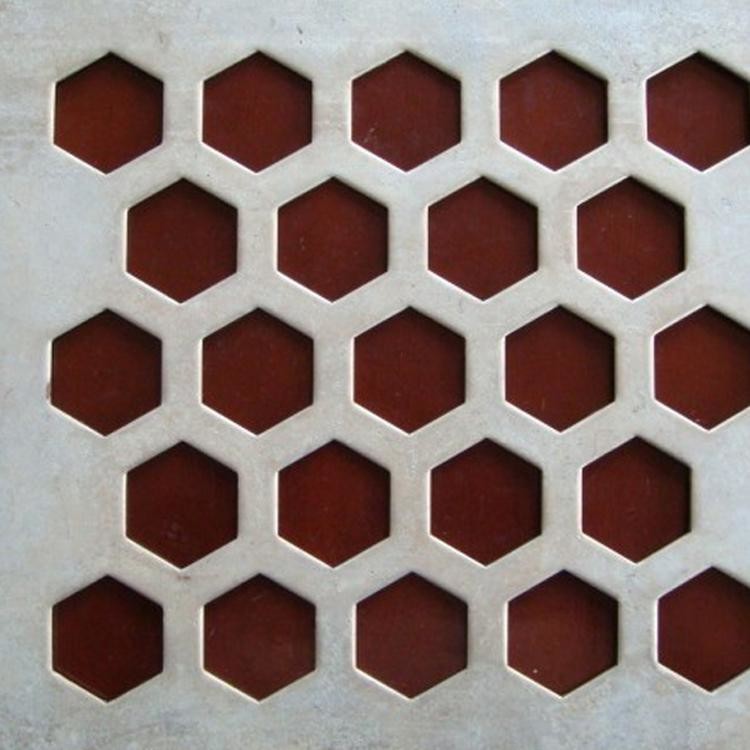

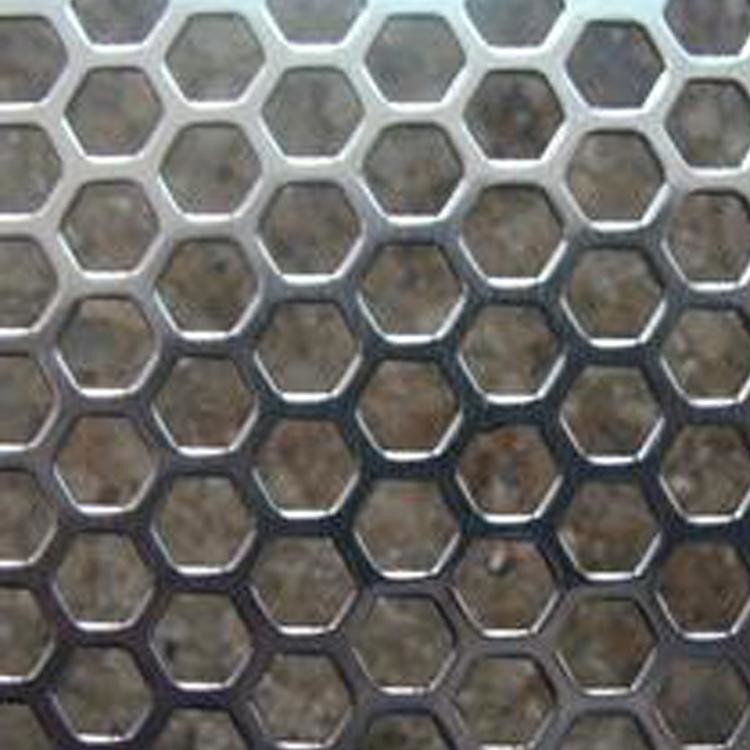

10mm Hexagonal hole Aluminum Perforated Metal Mesh
| Product Name | hexagon hole 10mm thick stainless steel perforated sheet |
| Sheet Size | 1) Thickness: 0.3mm-12mm 2) Length: 1.8m - 2.44m 3) Width: 0.8m - 1.22m |
| Hole Shape | Round, Square, Diamond, Rectangular perforations,Octagonal cane,Grecian, Plum blossom etc,can be made as your design. |
| SurfaceTreatment | 1) Electric galvanized,
2) Hot dipped galvanized,
3) PVC coated,
4) oxidation treatment
5) Powder coated
6) Polished |
| Material | 1) Steel:A36,ST37,ST52-3,S235JR,SS400,Q235,etc
2) Aluminium:1060,1100,2024,3003,5082,6003,7075 etc
3) Stainless steel:201 202 304 304L 316 316L 309 310S 317H 410 430 etc
4) Copper
5) Brass
6 Titanium1) Steel:A36,ST37,ST52-3,S235JR,SS400,Q235,etc
2) Aluminium:1060,1100,2024,3003,5082,6003,7075 etc
3) Stainless steel:201 202 304 304L 316 316L 309 310S 317H 410 430 etc
4) Copper
5) Brass
6 Titanium |
Product Available Sizes:
| Opening (mm) | Center type
(mm) | Thickness of sheet (mm)
min-max | Size (mm) | Stainless
Steel | Iron | Aluminium |
| 1.5×15 | ≥3.5 | 0.4~2.0 | 1220x2440 | √ | √ | √ |
| 2×10 | ≥3.0 | 0.4~2.0 | 1220x2440 | √ | √ | √ |
| 2×15 | ≥3.0 | 0.4~2.0 | 1220x2440 | √ | √ | √ |
| 2x20 | ≥3.5 | 0.4~2.0 | 1220x2440 | √ | √ | √ |
| 2.5×10 | ≥3.5 | 0.4~2.5 | 1220x2440 | √ | √ | √ |
| 3x10 | ≥4.0 | 0.4~2.5 | 1220x2440 | √ | √ | √ |
| 3.5x10 | ≥4.5 | 0.4~3.0 | 1220x2440 | √ | √ | √ |
| 4x5~25 | ≥5.0 | 0.4~3.5 | 1220x2440 | √ | √ | √ |
| 5x5~25 | ≥6.5 | 0.4~4.0 | 1220x2440 | √ | √ | √ |
| 10x10 | ≥12.0 | 0.5~4.0 | 1220x2440 | √ | √ | √ |
| 12x15 | ≥14 | 0.5~4.0 | 1220x2440 | √ | √ | √ |
| 15x16 | ≥18 | 0.6~4.0 | 1220x2440 | √ | √ | √ |
| 20x20 | ≥23 | 0.8~4.5 | 1220x2440 | √ | √ | √ |
| 22x23 | ≥25 | 0.8~4.5 | 1220x2440 | √ | √ | √ |
Product Applicaiton:

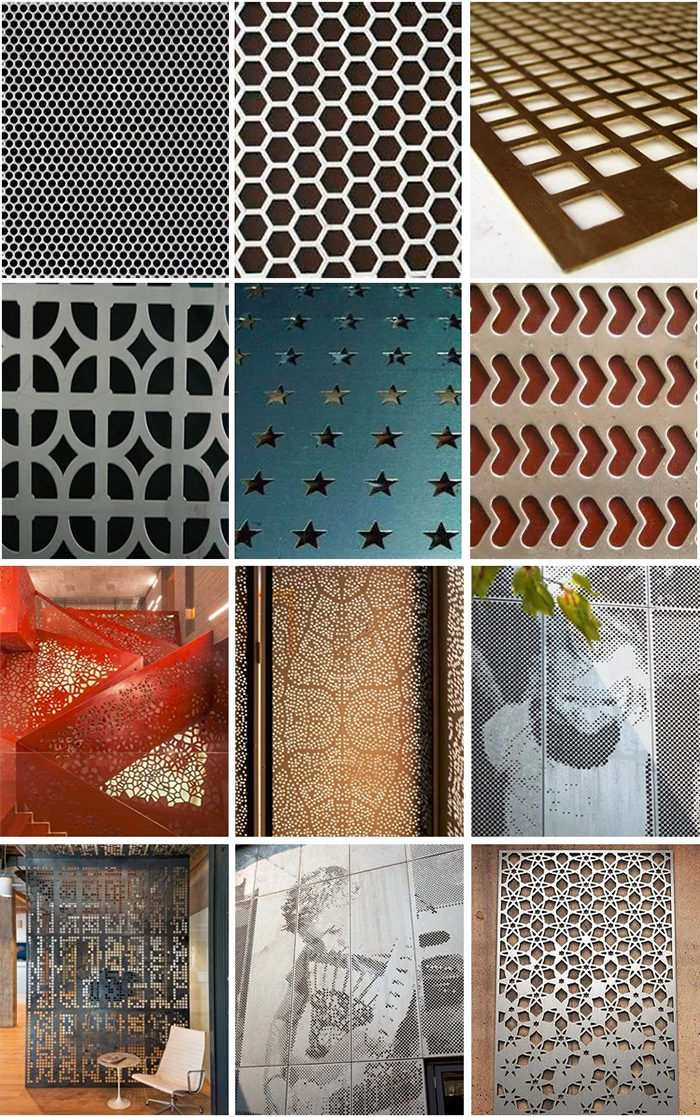

More Shapes:
FAQ
Q1. Minimum Order Quantity?
A:The MOQ is 1 tons.
Q2. What kind of terms of payment?
A:T/T, L/C are available.
Q3.Is free sample available?
A:Yes, free sample is available.
Q4. Can you do Customization & Reproduction if I provide a photo?
A:Yes, we do Customization & Reproduction service.
Q5. Does the packaging safe and arrive in good conditions?
A:Yes, safe Packing guarantee , all the products will arrive your door under good conditions.
Q6. How long does it usually take to deliver the product?
A:We will make the shipment to you immediately. It will take about 18 to 40 days arrive worldwide.
It depends on the specific quantity
Q7. Is drop shipping available?
A:Yes, it is, we can send to worldwide.
Product Tags:
|
|
10mm Hexagonal Perforated Aluminum Sheet / Round Perforated Metal Polished Images
|
