BWG16 Stainless Steel 304/316 Wire
BWG16 Stainless Steel 304/316 Wire Product Description
1. Standard: ASTM/JIS/GB
2. Grade: 201,304,308,308L,309,309L,310S,316,321,347,430,etc.
3. Diameter Range: Φ0.03 ~Φ2.0mm
4. Tensile strength: Hard Bright:1800~2300N/mm2
Mid hard bright: 1200N/mm2
Fog Soft:500~800N/mm2
5. Craft: Cold Drawn and Annealed
| Wire Diameter (mm) | Allowed Difference (mm) | Max. Diameter Difference (mm) |
| 0.020-0.049 | +0.002-0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003-0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.200-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |

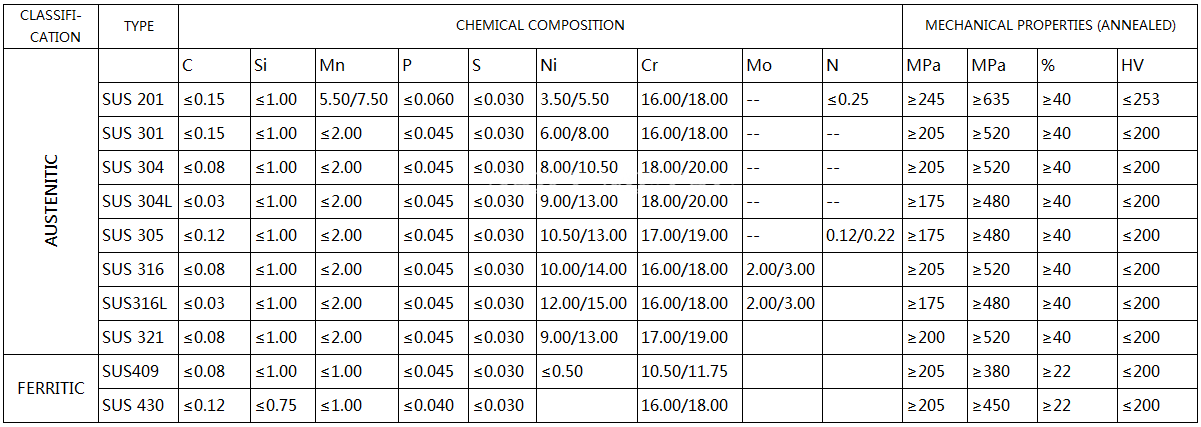

Chemical composition of stainless steel wire materials:

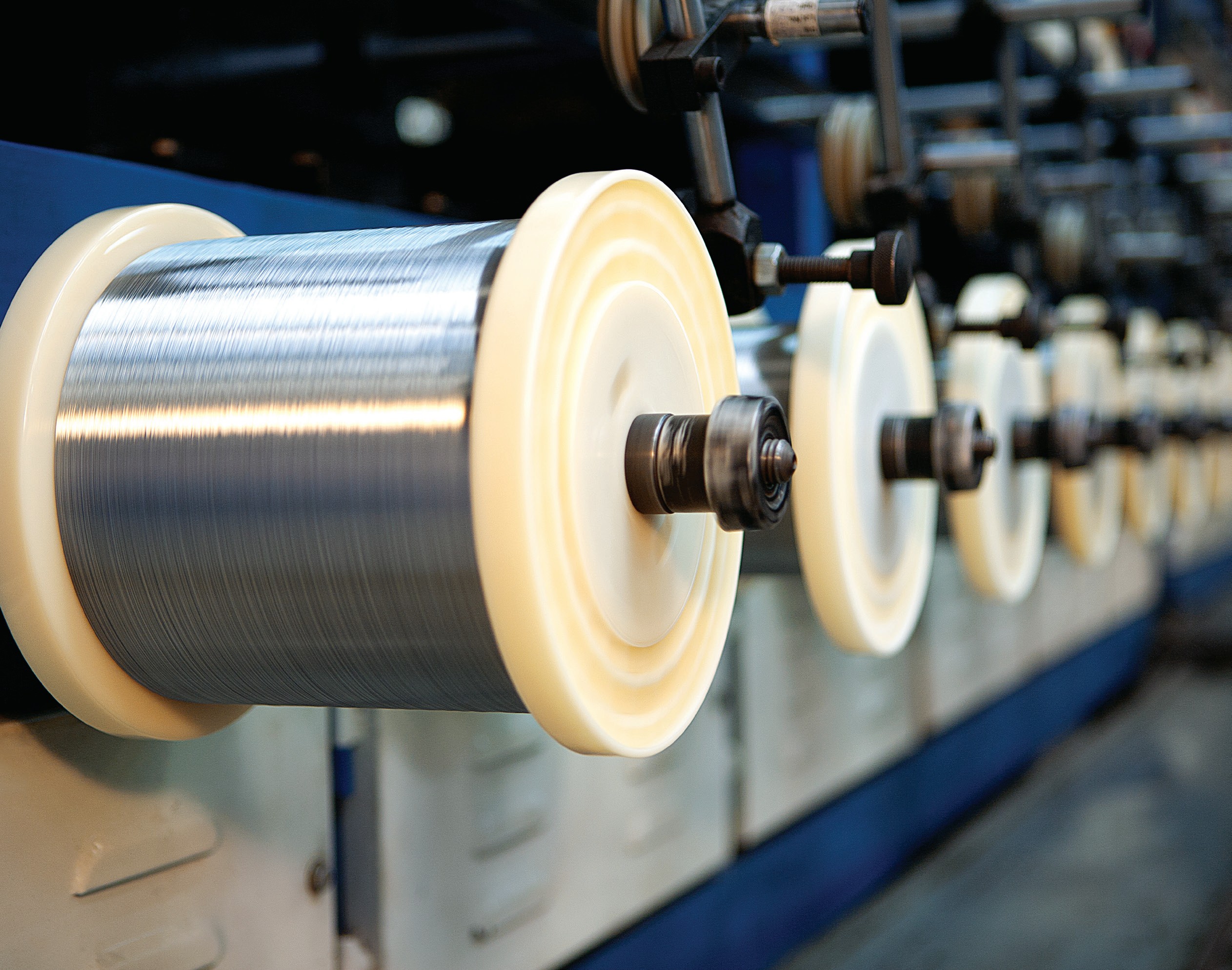

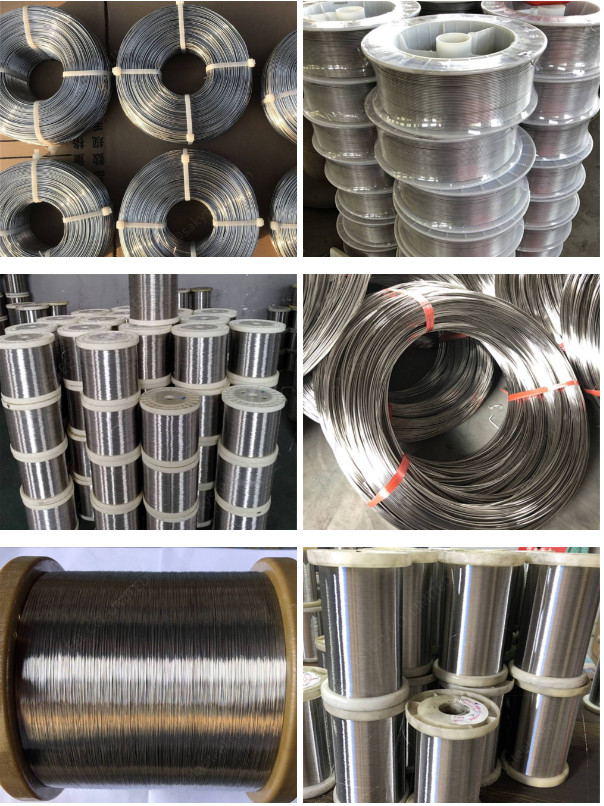

Products Images

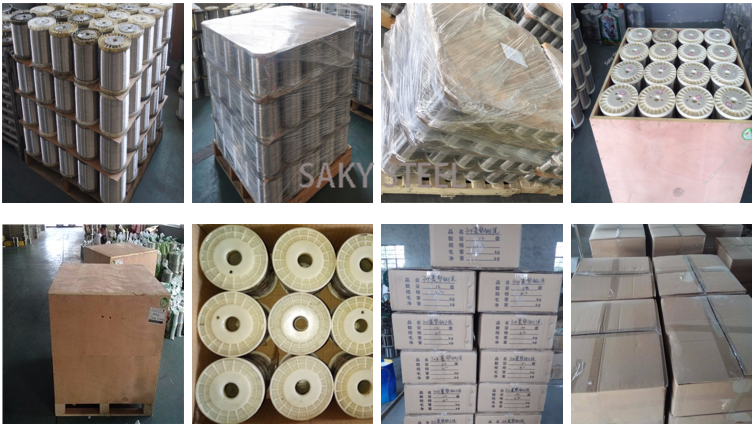

Packing & Shipping
Packaging Information of Stainless Steel Wire:
1.Diameter: Φ0.03~Φ0.25 mm ,can adopt ABS - DN100 plastic shaft packing , 2 kg per shaft , 16 shaft / per box;
2.Diameter: Φ0.25~Φ0.80 mm ,can adopt ABS - DN160 plastic shaft packing , 7 kg per shaft , 4 shaft / per box;
3.Diameter: Φ0.80~Φ2.00 mm ,can adopt ABS - DN200 plastic shaft packing , 13.5 kg per shaft , 4 shaft / per box;
4.Diameter :more than 2.00, per volume weight in 30~ 60 kg, inner and outside plastic film packaging;
If you have any special requirements please specify

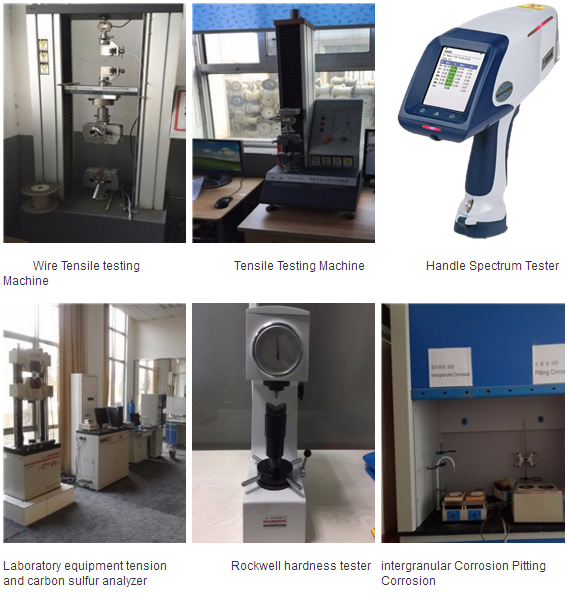

Quality Control:
Applications
FAQ
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
